Howo NX cabin truck 14T crane with direct sale

شاحنة رافعة Howo NX سعة 14 طنًا لموريتانيا

ال Howo NX cabin heavy boom truck is equipped with weichai brand diesel engine with a strong power of 340 HP, which can meet various work needs. The cab have 3 people seat and is equipped with heating and cooling air conditioning, providing the driver with a comfortable driving environment. The upper body of the Howo heavy boom truck is equipped with a t elescopic boom crane with a maximum lifting capacity of 14 000kg and a full 360° rotation.

القدرة على العمل:
14 tons
البعد (مم):
10300×2580×2950 mm
قاعدة العجلات (مم):
4500+1350 mm
قوة المحرك:
340HP
نوع المحرك:
WP10S340E22
محرك المحور:
6x4, LHD
صندوق التروس:
HW 10 shift
ملاحظات:
6X6, RHD drive type avaiable

الاستفسار الآن

ال Howo NX cabin heavy boom truck is equipped with weichai brand diesel engine with a strong power of 340 HP, which can meet various work needs. The cab have 3 people seat and is equipped with heating and cooling air conditioning, providing the driver with a comfortable driving environment. The upper body of the Howo heavy boom truck is equipped with a t elescopic boom crane with a maximum lifting capacity of 14 000kg and a full 360° rotation.

The crane weight is 357 0kg and the installation space is 13 50mm. The control panel can be selected in English or other languages to facilitate users with different needs. Howo cargo truck mounted 14tons crane also provides a variety of optional configurations, such as telescopic boom cranes, hydraulic dump boxes, box thickness and height customized according to needs, and optional remote control boxes.

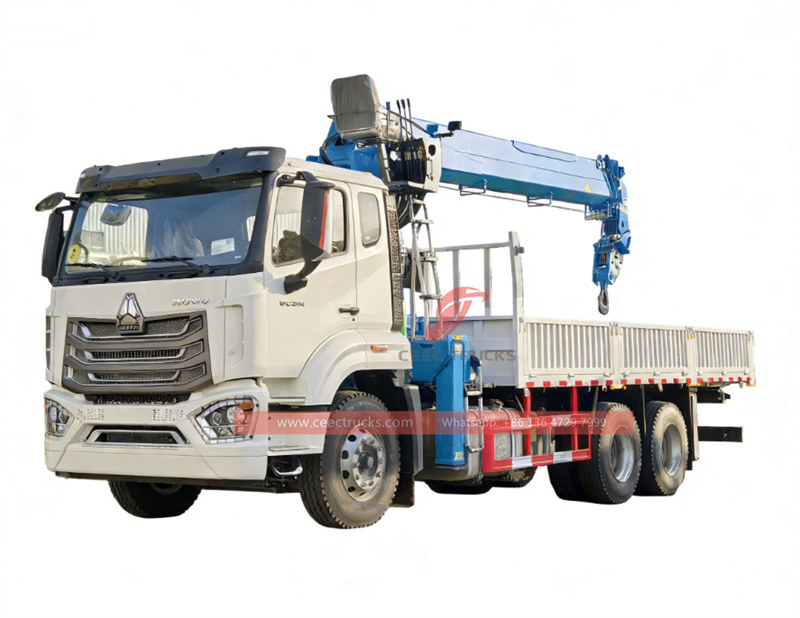

Howo 6x4 cargo truck mounted 14 tons crane

* Howo 6x4 service truck 14ton crane

Howo 10wheeler boom crane truck*

-----------------------------------------------------------------

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

✦ Product Introduction of Howo Boom Truck « « «

Manufacturer: CEEC Trucks Group

Features:

1. Truck Chassis: Howo NX truck chassis, 6x4,6X6 model

WP model with 340HP and emission 9.8L.

2. Cargo material: 6mm thick high-quality steel for prolonged service lier
carbon steel, aluminum alloy or stainless steel can be choose.

3. Crane Brand : XCMG, Palfinger, HIAB, CEEC, etc.

4. Optional design: such as kunckle boom, grab boom, tarpaulin cargo box, customized box thickness and height according to needs, and remote operation control box.

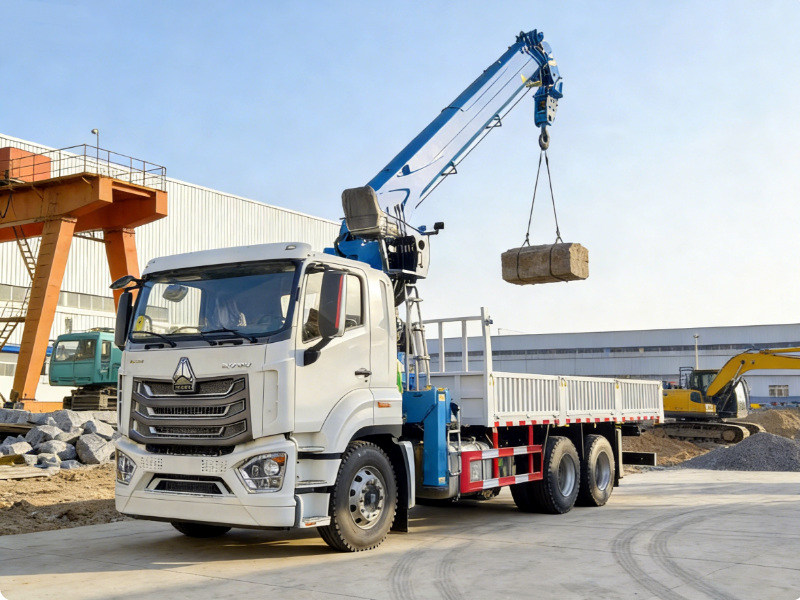

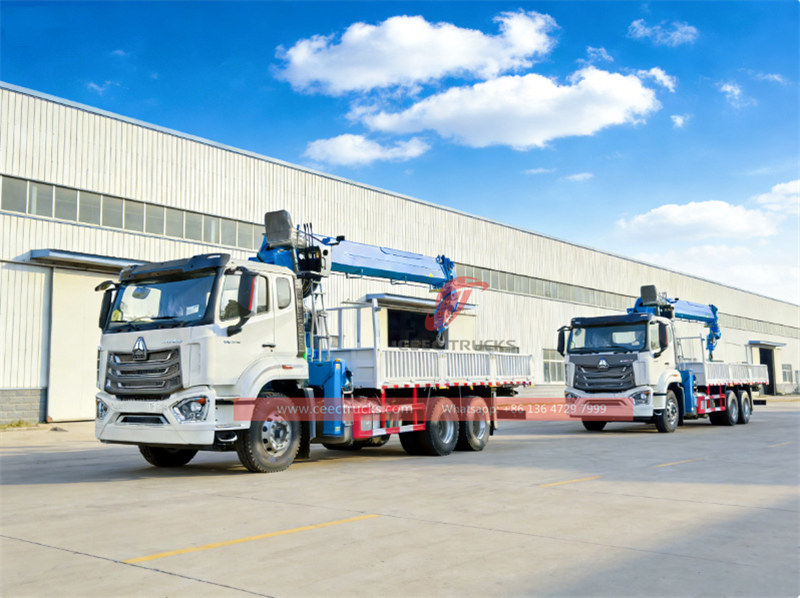

Howo 6x4 cargo truck mounted 14 tons crane

The Howo NX 14ton truck mounted crane is composed of a boom, turntable, frame, legs and other parts. The mechanical movements of the telescopic crane truck are realized through the movements of luffing, telescopic, rotating, winching and other mechanisms, and the lifting operation is realized through the combination of different movements. Equipped with an intelligent safety system, including overload protection, torque limiter to ensure operational safety. Optional grab buckets, hanging baskets and other accessories are available to meet the needs of different working conditions.

✦ Product Parameter of Howo Crane Lorry Truck « « «

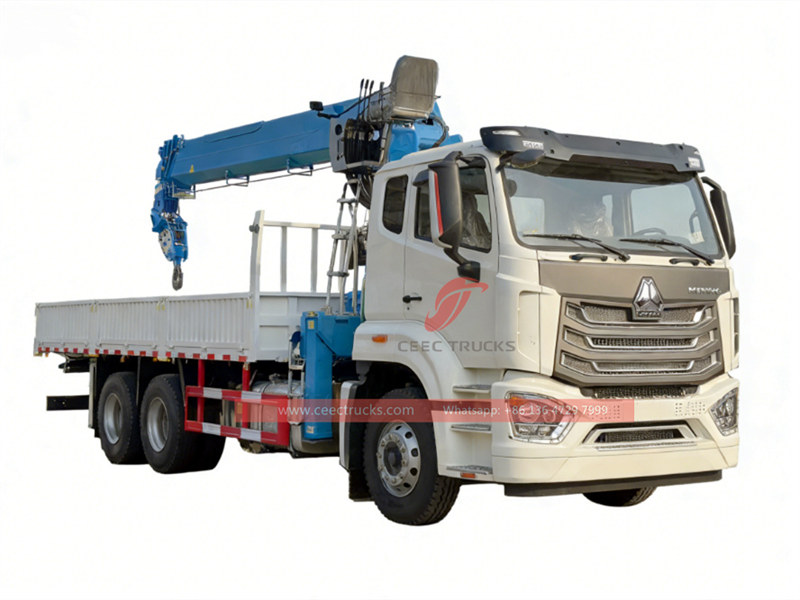

Howo NX 6x4 cargo truck mounted 14 tons crane

Howo 6 × 4 Telescopic B oom C rane T ruck
Vehicle model		CSC 5 2503GDC		Overall dimensions (mm)	113 00×2 58 0× 295 0
GVW (kg)		25 000		Operational height (m)	23m
Curb weight(kg)		123 00		Max. Speed (km/h)	95
Chassis Description
Chassis Brand			Howo NX chassis
Cab			Single cab with A/C
Allowable person in cab			3
Wheel base (mm)			4650+1350
Front/Rear overhang (mm)			1 350 /2 3 75
Number of axles			3
Axle	Front axle (kg)		7 500
	Rear axle (kg)		130 00 *2
Traction system			6 * 4
Operation control system			Power steering
Braking system			Air brake
Transmission			Fast 12 -speed
Tire specification			12.00 R20
Tire quantity			10 +1
Engine Description
Engine manufacture			Weichai
Engine model			WP10.340E32
Emission standard			Euro 3
Exhaust/output			9726 ml/ 274 kw
Horse power			340 HP
Upper Body Description
Max. working height (m)			20.5
Max. working radius (m)			18.5
Working pressure (Mpa)			1 6
Crane Type			Telescopic boom crane
Max Lifting Capacity			14 000 kg
Slewing Angle			360° All rotation
Crane Weight			13 50 0 kg
Installation Space			13 5 0 0 mm
Rotation Angle			360° Hydraulic
Control panel			English or Your language
Cargo Box Dimension			68 *002 5 00500 mm*
Cargo Box Material			Q235 High-level Steel
Optional
Knuckle boom crane
Hydraulic tipper box
Box thickness according to requirement
Box height could be nominated
Remote Control Box optional

✦ Analysis diagram of Isuzu Boom Truck « « «

Crane R ated L ifting C apacity (Kg)	14000
Rated L ifting C apacity (T.m)	35
Max L ifting H eight (mm)	18.2
Number of C rane B oom S ections	5
Basic A rm C ross- S ection	H exagon
Rotation A ngle	360°
Leg S pan (fully retracted/fully extended) (m)	2.5/5.8
Recommendation S ystem T raffic (L/min)	63/40
System R ated P ressure (MPa)	22
Operation M ethod	Upper Seat O peration
Hydraulic Oil Tank	20 0L

✦ High load capacity and passability of Howo Crane Truck « « «

♦ The Howo heavy 14 tons crane truck has a 6x4 drive system , rear double-axle drive + front axle steering .

♦ R easonable axle load distribution, strong load capacity, usually 28 tons, suitable for heavy load transportation .

♦ E xcellent ability to escape from complex road conditions such as mud and ramps.

♦ It adopts high-strength steel beams with strong torsion resistance, and is equipped with multi-leaf spring suspension, with high load-bearing stability.

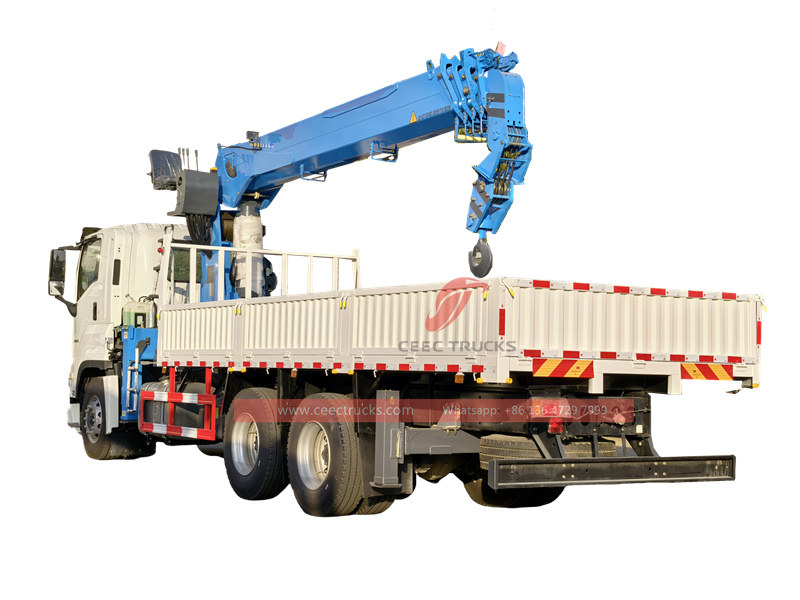

Howo NX cabin 6x4 crane truck

♦ Equipped with Weichai technology engine (such as WP10/WP12) + Sinotruk HW series gearbox + wheel reduction bridge .

♦ L ow speed and high torque characteristics are outstanding, suitable for heavy load climbing and continuous operation.

♦ The Weichai engine has a life of more than 800,000 kilometers .

♦ K ey parts (such as hydraulic pumps and crane slewing mechanisms) are top brands , with a low failure rate.

✦ Structural Strength and Stabili ty of Howo crane truck « « «

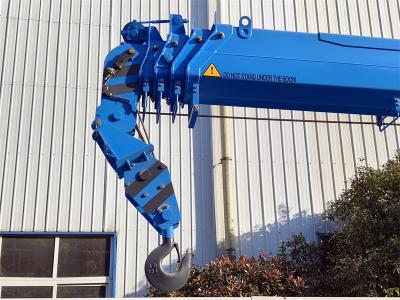

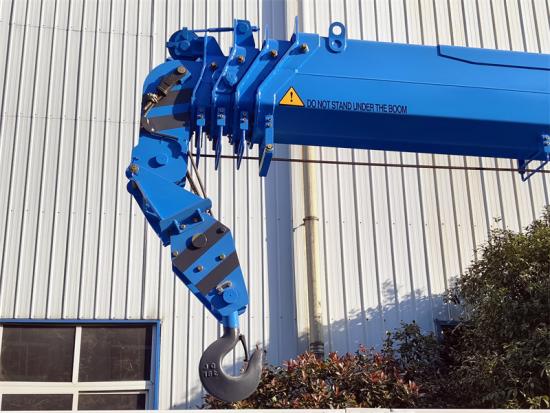

♦ The boom is made of high-strength steel with excellent bending and torsion resistance.

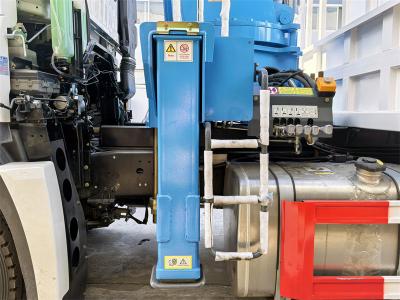

♦ The H-shaped outriggers are horizontally unfolded and the width is adjustable.

♦ The larger the support area, the stronger the anti-overturning ability.

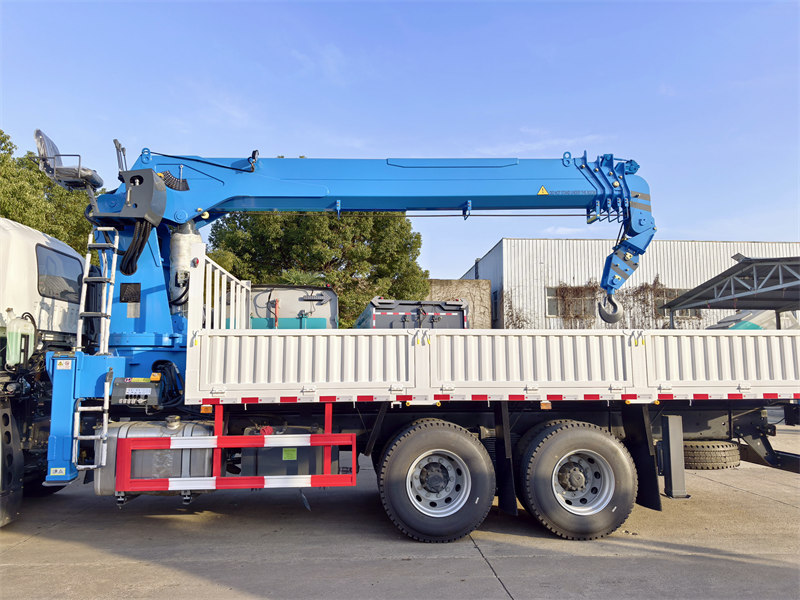

Howo 14tons crane truck

♦ The multi-pump confluence technology enables the boom to move synchronously and smoothly, without jamming or shaking, in telescopic, slewing and amplitude adjustment.

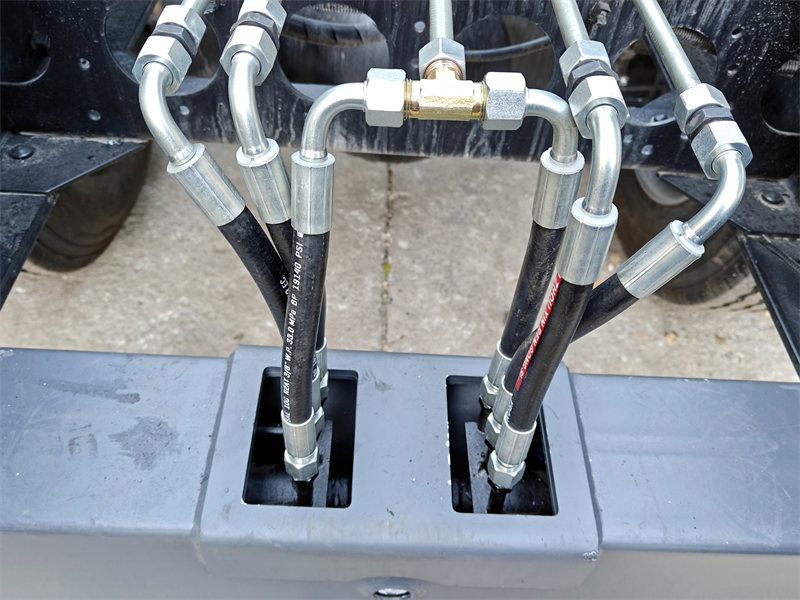

♦ Key valve (such as balancing valves and overflow valves) use high-quality domestic and foreign brands to reduce the risk of internal leakage.

♦ The surface of the boom is sandblasted + epoxy zinc-rich primer + polyurethane topcoat to adapt to salt spray and humid environments.

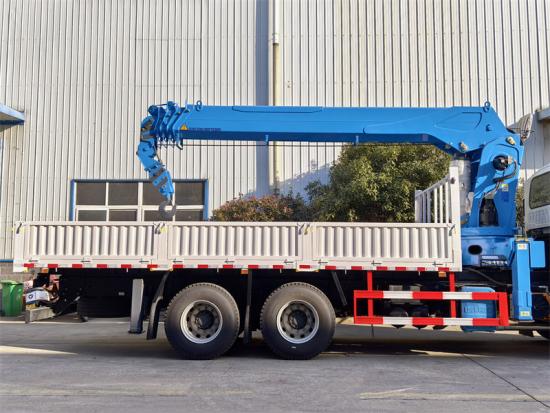

Howo 14 tons crane lorry truck

✦ Optional Equipment of Howo crane truck « « «

Due to the Howo 14 ton crane truck has a lifting height of up to 20 meters and a certain load-bearing capacity.The boom truck can combine it with various functional equipment to achieve multi-functionality and maximize the value of the crane truck.

Garbage Grabber
Wood Grabber
Lifting Electromagnetic Chuck

Planting Drill Bit
Secondary Hook
Manlift Bucket

Products--100% Customized Level One!

Transportation--100% Safety, Convenience, Efficient!

Services--7days + 24hours Safetify Service!

1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasionalble price

3.we can offer your a reliable after-sell service

4.we have skilled professinal design team

5. promptly delivery. any order is welcome.

CEEC factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.

★ Euro 3 type, Weichai engine, fuel consumption save 20%

★ HW Manual 10 shift mechanical transmission gearbox

★ 12 months fast moving spare parts for FREE

★ Authorized Howo service truck 14ton crane exporter

★ Training service for Howo truck mounted crane.

Howo 6x4 cargo truck mounted 14 tons crane
